Alert configuration

The Bizfly Cloud Watcher service supports configuring alarms for Auto Scaling Groups on Bizfly Cloud. These thresholds are based on the monitoring system and metrics collection of Bizfly Cloud. Users do not need to install agents or tools on the servers.

Resources that can have alarms set include: CPU, RAM, Network Bandwidth.

Alarms will be based on the average activity level of a resource over a certain period.

Example: A user wants to be alerted when the average CPU usage exceeds 80% for 10 minutes.

At 10:10 AM, the servers in the Auto Scaling Group start showing an average CPU activity of 82% and maintain this level for about 30 minutes.

The Bizfly Cloud user will receive an alert about this activity level at 10:20 AM.

The Bizfly Cloud Watcher Service also supports repeating alerts if configured by the user. In the above example, if the user wants to repeat the alert after 10 minutes if the system still exceeds the threshold, then at 10:30 AM, the user will receive a repeated alert.

Note: For alarms used for Auto Scaling Groups created by the System, users are not allowed to update or delete them. These alarms are created and used for the Auto Scaling Group.

1. Create Alarm

Access and use the service through the All Services menu and select Cloud Watcher.

Step 1: In the Auto Scale Group tab, select Create Alarm.

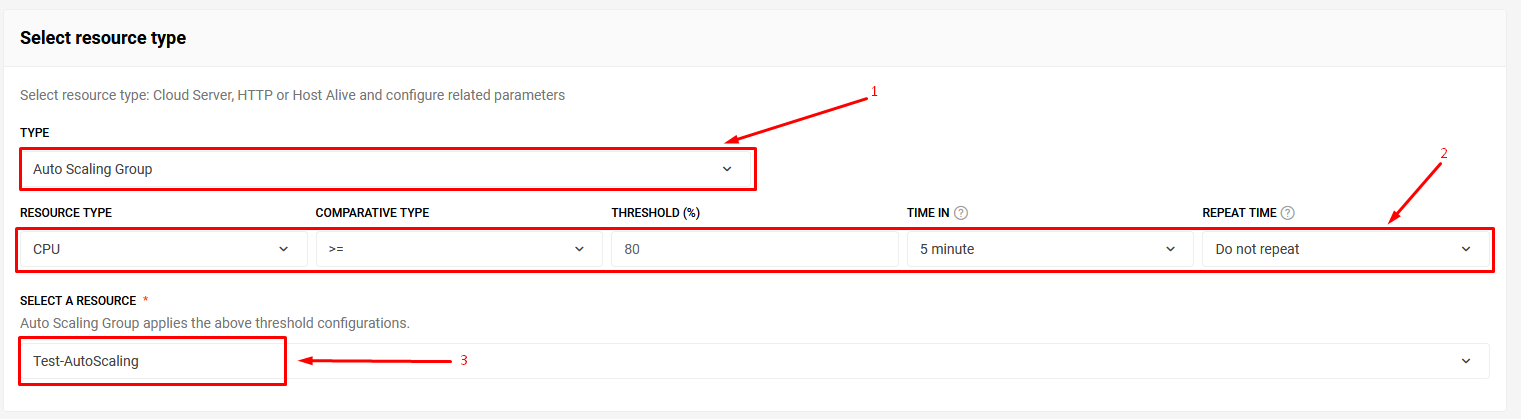

Step 2: Select the type of Autoscale Group.

Configure the parameters for the thresholds and the repeat time for the alarm.

Step 3: Select the Auto Scale Group to apply.

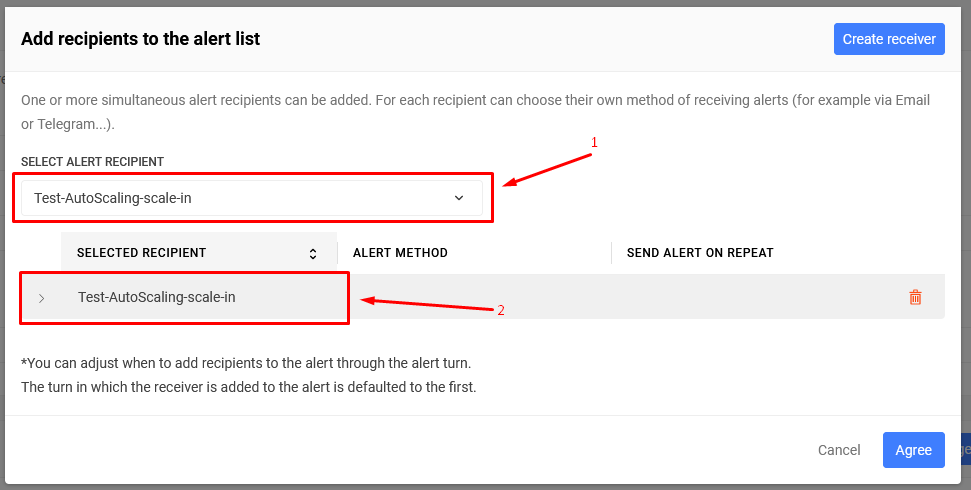

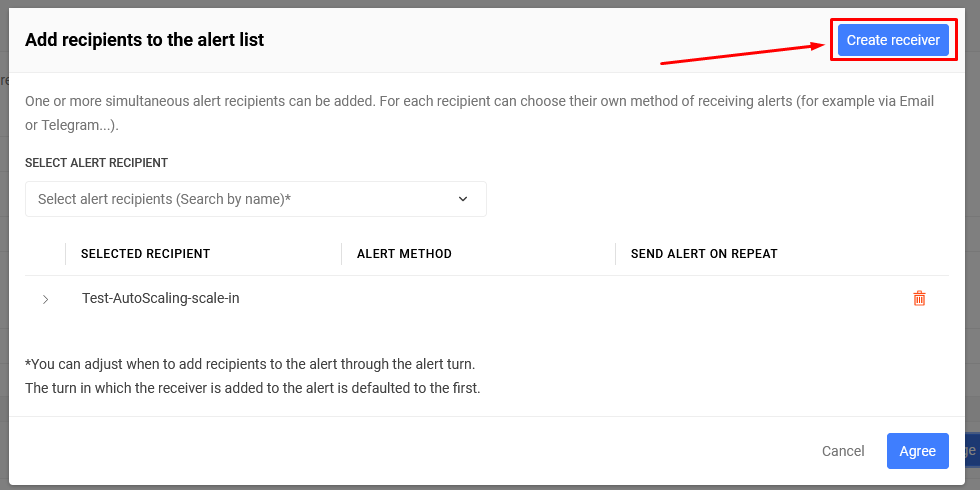

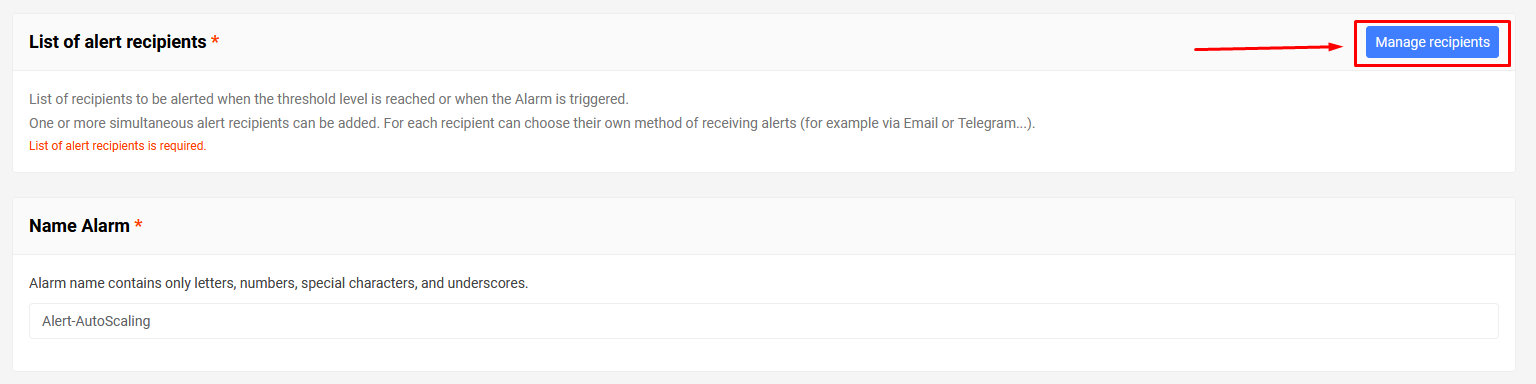

Step 4: Click on Manage Recipients to configure the recipients who will receive this alarm, then select Agree.

For recipients using the SMS method:

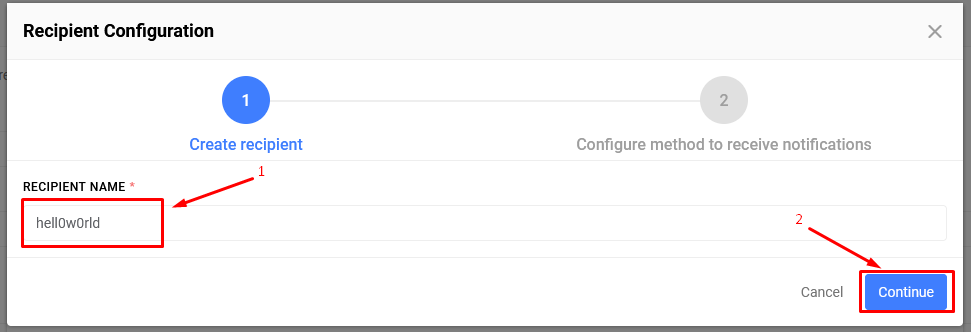

Enter the recipient’s name.

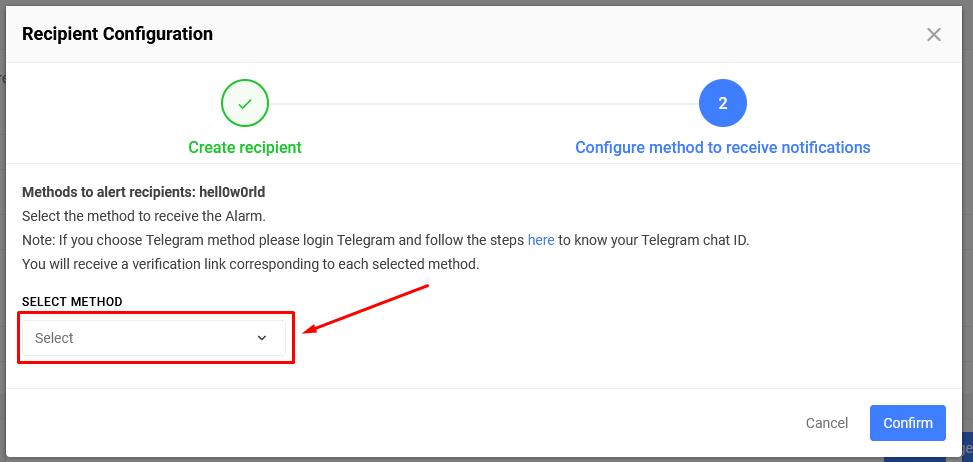

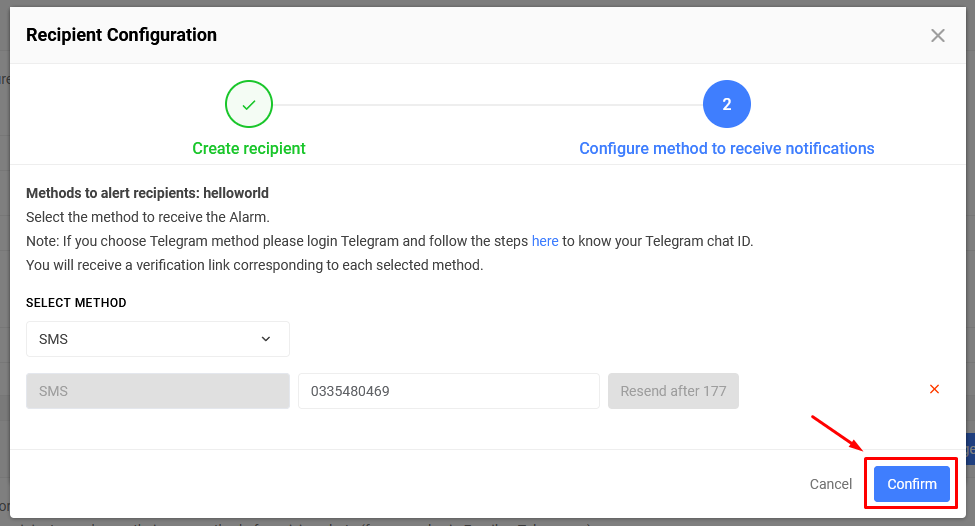

Select the method of receiving alerts.

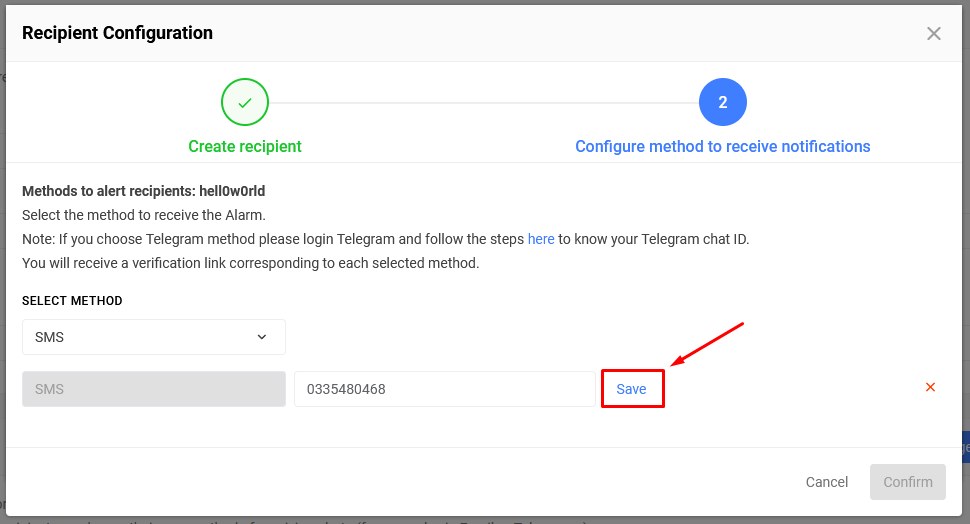

Select Save Phone Number.

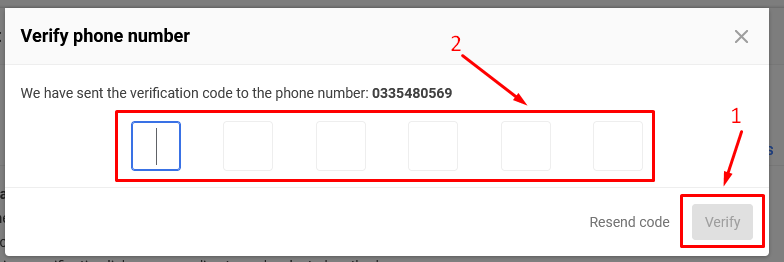

Enter the verification code.

Select confirm.

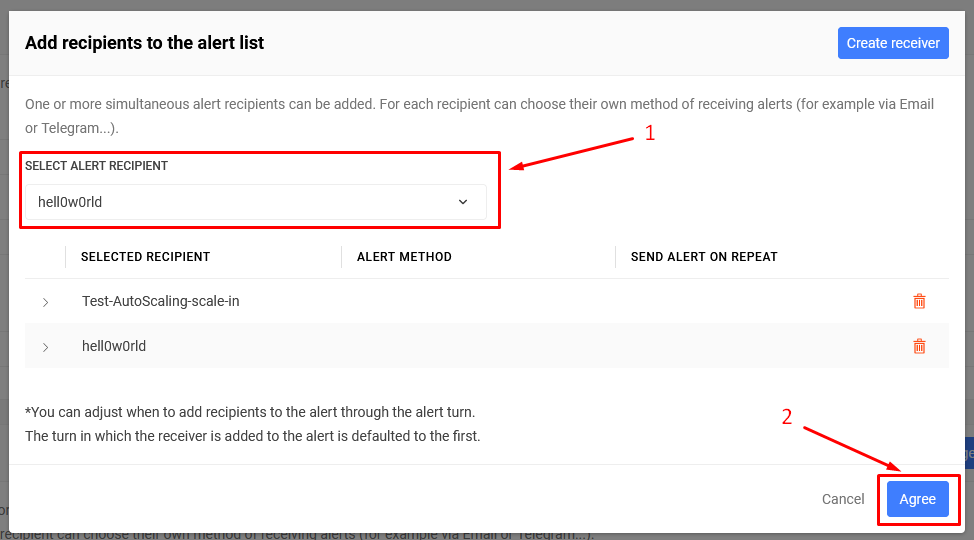

Select the newly created recipient method and choose Agree.

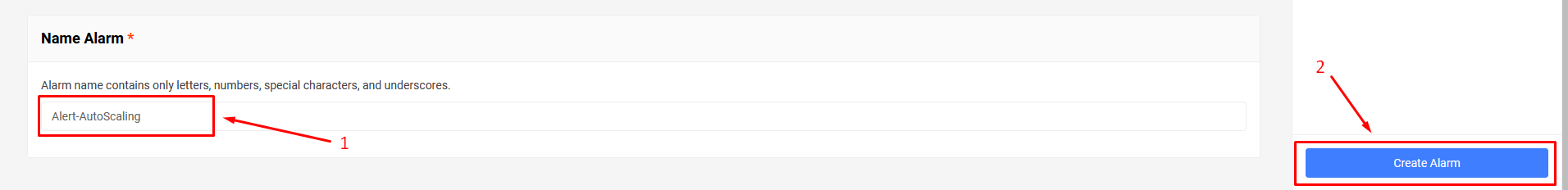

Enter the name and select Create Alarm.

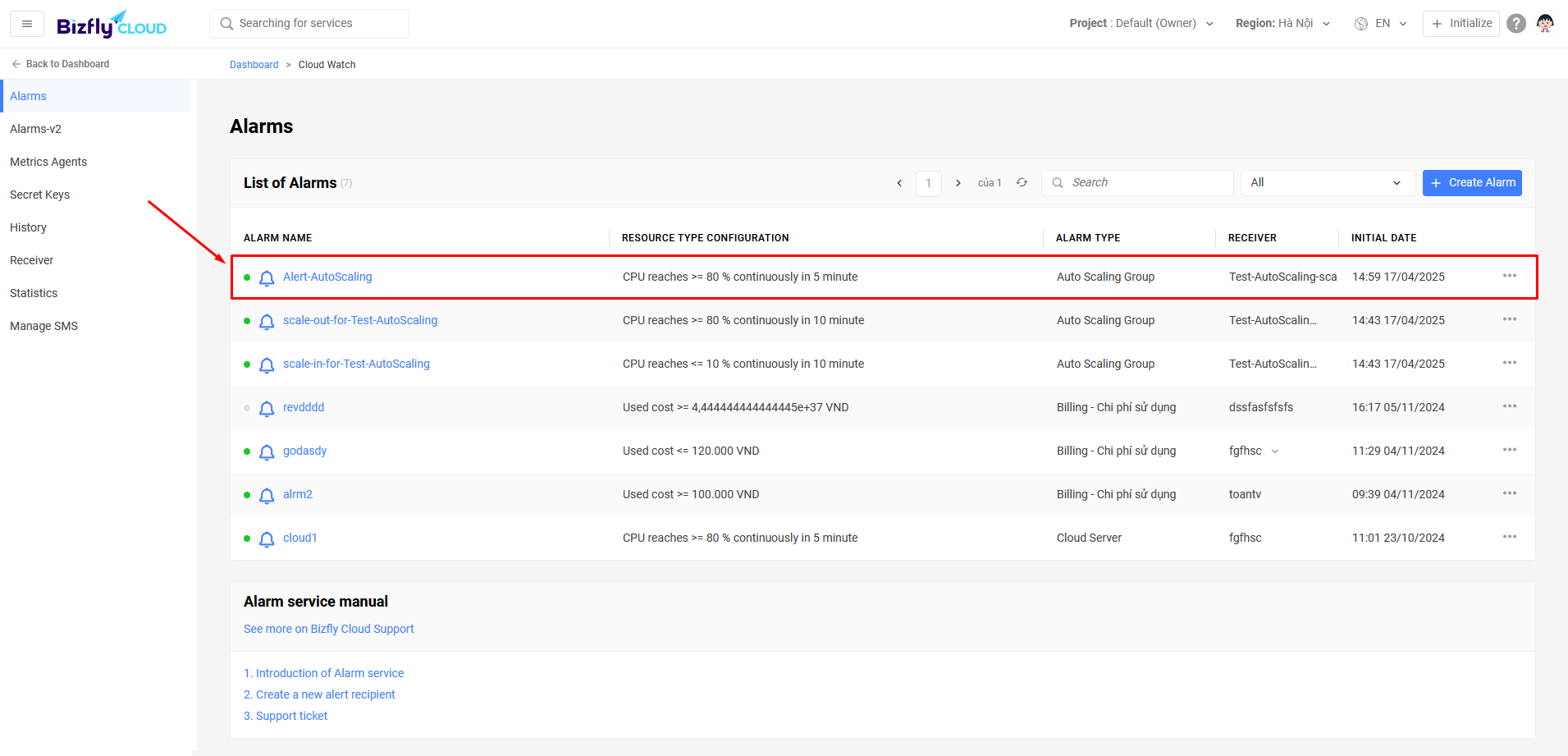

Result:
